Special for central air conditioning pipeline

IC Card Smart Electric Ball Valve

Technical parameters:

Nominal pressure: PN1.6MPa
Working medium: tap water
Working temperature: 0℃≤t≤90℃
Pipe thread standard: in line with ISO228 standard

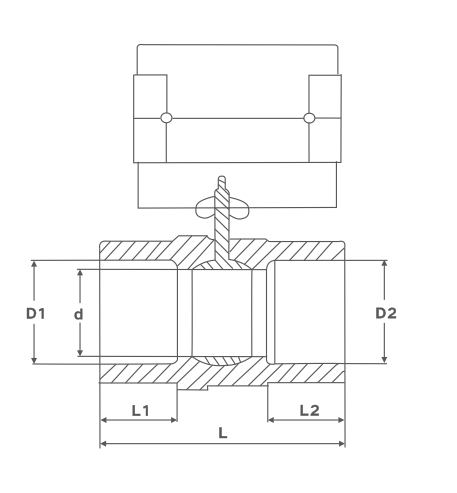

Product details


DN
(mm)		LL1L2dD1/D2
206213182024
257418202530
328421213039
